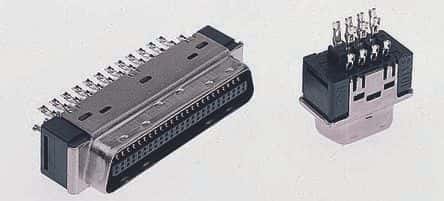

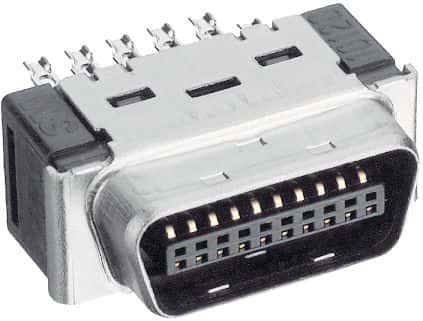

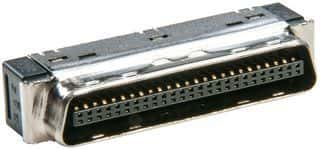

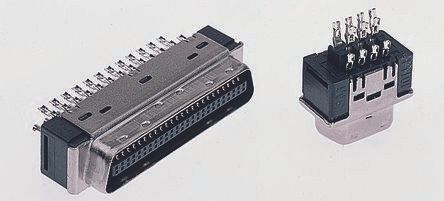

Mini D Ribbon (MDR) cable mount connector featuring 50 positions and 50 contacts with a 2.54mm pitch. This male, straight orientation connector offers a 1A current rating and operates within a temperature range of -55°C to 105°C. Constructed with a steel housing and copper alloy contacts with gold plating, it boasts a UL94 V-0 flammability rating and is shielded for enhanced performance. The connector is lead-free and RoHS compliant, suitable for bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the 3M 10150-3000PE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Color | Black |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 19.3mm |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 41.1mm |
| Material | Steel |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 50 |
| Number of Poles | 50 |
| Number of Ports | 1 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 101, Mini D Ribbon (MDR) |
| Termination | Solder |
| Width | 9.1mm |
| RoHS | Compliant |
