Package100
Capacitance46.248pF
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
3M 3302-9 technical specifications.
General
Capacitance
46.248pF
Package/Case
100
Characteristic Impedance
105R
Color
Multiple
Conductor Material
Copper
Flammability Rating
UL VW-1
Jacket Material
PVC
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Cores
9
Number of Strands
7
Number of Ways
9
Pitch
1.27mm
Reach SVHC Compliant
Unknown
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Width
11.43mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
3M 3302-9 Datasheet
Download the complete datasheet for 3M 3302-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

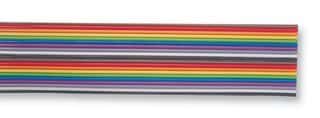

Product Images
