3414-6000

Datasheet

34 Pos 2.54mm Pitch RA IDC Socket Connector, Female, Gold, 1A

3414-6000

Name: 3414-6000 3M
Brand: 3M
SKU: 3414-6000

34 Pos 2.54mm Pitch RA IDC Socket Connector, Female, Gold, 1A

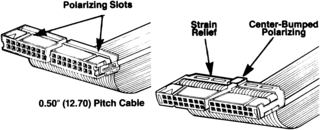

34-position, 2-row right-angle shrouded header receptacle for board-to-board and mezzanine applications. Features female socket contacts made of copper alloy with gold plating, suitable for ribbon wire cable mounting with insulation displacement termination (IDT). Operates within a temperature range of -55°C to 105°C, with a maximum current rating of 1A. Housing is grey polyester with UL94 V-0 flammability rating and UL approval.

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

3M 3414-6000 technical specifications.

General

Approvals	UL
Color	Grey
Contact Gender	Female
Contact Material	Copper Alloy, Copper
Contact Plating	Gold
Contact Type	Female Socket
Depth	7.6mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Housing Color	Grey
Insulation Material	Polyester
Lead Free	Lead Free
Length	47.8mm
Max Current Rating	1A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Free Hanging, Cable
Number of Contacts	34
Number of Positions	34
Number of Rows	2
Orientation	Right Angle
Package Quantity	100
Packaging	Bulk
Pitch	2.54mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	3000
Termination	IDT
Weight	1.5lb
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Type	Ribbon
