50 Pos Card Edge Conn, 2.54mm Pitch, RA, IDC, Female

3415-0000

Name: 3415-0000 3M
Brand: 3M
SKU: 3415-0000

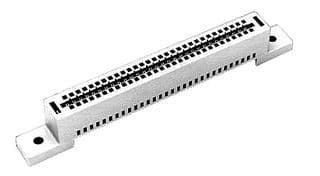

50 Pos Card Edge Conn, 2.54mm Pitch, RA, IDC, Female

50-position, 2-row right-angle card edge connector with 2.54mm pitch, featuring IDC termination and a panel/through-hole mount. Constructed with a PBT insulation material and copper alloy contacts with gold plating, this female connector supports a 1.78mm card thickness and operates within a -55°C to 105°C temperature range, rated for 1A current. UL approved and RoHS compliant, the grey housing is UL94 V-0 flammability rated.

Current Rating1A

MountingPanel, Through Hole

Quick Jump:

Technical Specifications

3M 3415-0000 technical specifications.

General

Approvals	UL
Card Thickness	1.78mm
Color	Grey
Contact Material	Copper Alloy
Contact Plating	Gold
Current Rating	1A
Depth	11.2mm
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Grey
Insulation Material	PBT
Lead Free	Lead Free
Length	99.1mm
Max Current Rating	1A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Panel, Through Hole
Number of Contacts	50
Number of Positions	50
Number of Rows	2
Orientation	Right Angle
Package Quantity	100
Packaging	Bulk
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	3000
Termination	IDC
Weight	5.3lb
Width	18mm
