3428-5002

20 Pos 2 Row RA Header, 2.54mm Pitch, Solder, Gold, 1.75A

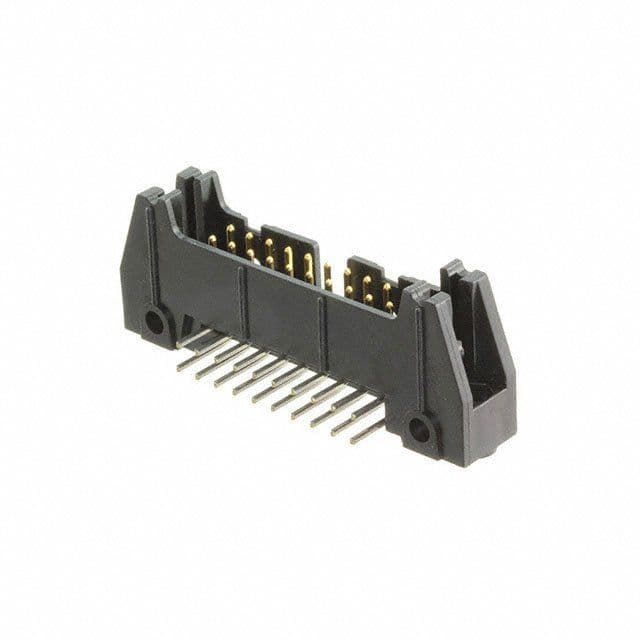

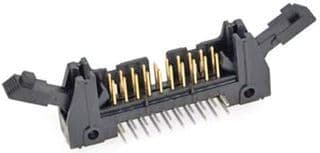

Right-angle male header connector featuring 20 contacts arranged in 2 rows with a 2.54mm pitch. Contacts are copper alloy with gold plating, offering a square male pin shape. Rated for 1.75A current and 1kV voltage, with a maximum operating temperature of 105°C. The through-hole mount design utilizes a gray glass insulator with a solder termination. UL approved and flammability rated UL94 V-0.

Voltage Rating1kV

Current Rating1.75A

MountingThrough Hole

Quick Jump:

Technical Specifications

3M 3428-5002 technical specifications.

General

Approvals	UL
Color	Grey
Contact Finish - Mating	GOLD
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1.75A
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Grey
Insulation Color	Black
Insulation Material	Glass
Lead Free	Contains Lead
Max Current Rating	1A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	20
Number of Positions	20
Number of Rows	2
Orientation	Right Angle
Package Quantity	100
Packaging	Bulk
Pitch	2.54mm
RoHS Compliant	No
Series	3000
Termination	Solder
Voltage Rating	1kV
Weight	1.7lb
