Right-angle, male SCSI connector with 50 positions and 50 contacts, featuring IDC termination and a 2.16mm pitch. This grey, cable-mount connector is constructed with a steel housing and copper alloy contacts plated with gold, rated for 1A current. Operating within a temperature range of -55°C to 105°C, it is UL recognized, RoHS compliant, and UL94 V-0 flammability rated.
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
3M 3564-1001 technical specifications.
General
Approvals
UL
Color
Grey
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
1A
Depth
15.2mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Grey
Lead Free
Lead Free
Length
83.1mm
Material
Steel
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
50
Number of Ports
1
Number of Positions
50
Number of Rows
2
Orientation
Right Angle
Package Quantity
100
Pitch
2.16mm
Plating
Gold
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
3000
Termination
IDC
Weight
6.5lb
Width
20.8mm
Wire/Cable Type
Round, Flat
Compliance
RoHS
Compliant
Datasheet
3M 3564-1001 Datasheet
Download the complete datasheet for 3M 3564-1001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

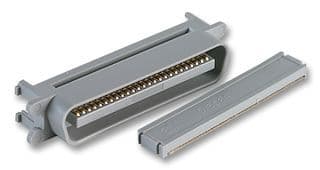

Product Images
