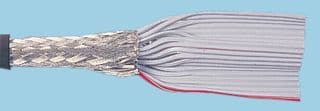

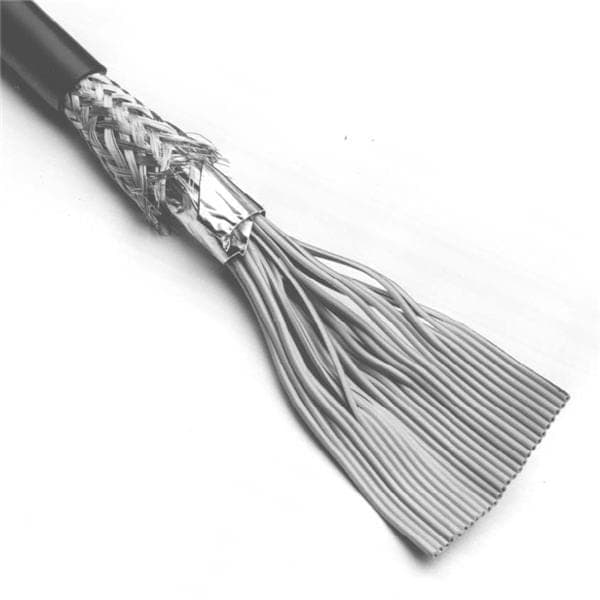

Shielded ribbon cable featuring 64 conductors and a 1.27mm pitch, constructed with copper conductors and a PVC jacket. This round-to-flat cable offers a 300V voltage rating, a maximum operating temperature of 105°C, and a characteristic impedance of 106 Ohms. The cable is 100 feet in length and is supplied on tape and reel packaging.
Capacitance90.88pF
Voltage Rating300V
MountingCable
Inductance0.43uH
Quick Jump:
Technical Specifications
3M 3659-64 technical specifications.
General
Cable Pitch
1.27mm
Capacitance
90.88pF
Characteristic Impedance
106R
Color
Black, Grey
Conductor Material
Copper
Contact Plating
Tin
Impedance
62R
Inductance
0.43uH
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
64
Number of Cores
64
Number of Strands
7
Number of Ways
64
Packaging
Tape and Reel
Pitch
1.27mm
Reach SVHC Compliant
No
Shielding
Shielded
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Width
80mm
Wire/Cable Diameter
13.7mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Round, Flat, Flat Flex
Compliance
RoHS
Compliant
Datasheet
3M 3659-64 Datasheet
Download the complete datasheet for 3M 3659-64 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
