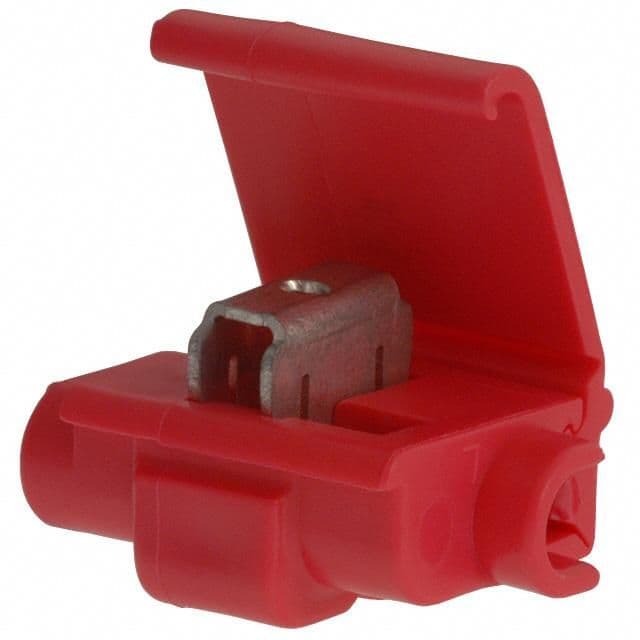

Insulated tap terminal featuring brass construction with tin plating for enhanced conductivity and corrosion resistance. Designed for wire gauges from 22AWG to 16AWG, this male terminal offers a 600V voltage rating. It includes two brass contacts with tin plating and a red PP insulation for clear identification. The terminal measures 19.3mm in length and 14.7mm in depth, suitable for box mounting. Supplied in a box of 1000 units.
Package100
Voltage Rating600V
MountingBox
Quick Jump:
Technical Specifications
3M 558-BOX technical specifications.
General
Body Material
Brass
Body Plating
Tin
Package/Case
100
Color
Red
Contact Material
Brass
Contact Plating
Tin
Depth
14.7mm
Gender
Male
Insulation
Insulated
Insulation Color
Red
Insulation Material
PP
Lead Length
3m
Length
19.3mm
Mount
Box
Number of Contacts
2
Package Quantity
1000
Packaging
Box
Reach SVHC Compliant
Unknown
Sensing Distance
3m
Series
558
Terminal Material
Brass
Termination
IDC
Thickness
0.5mm
Voltage Rating
600V
DC Rated Voltage
600V
Weight
4.1lb
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
22AWG
Compliance
RoHS
Not Compliant
Datasheet
3M 558-BOX Datasheet
Download the complete datasheet for 3M 558-BOX to view detailed technical specifications.
