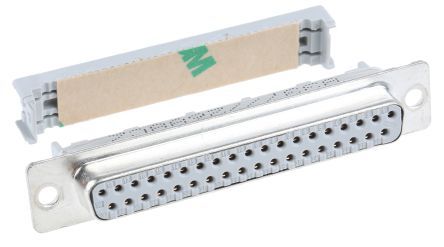

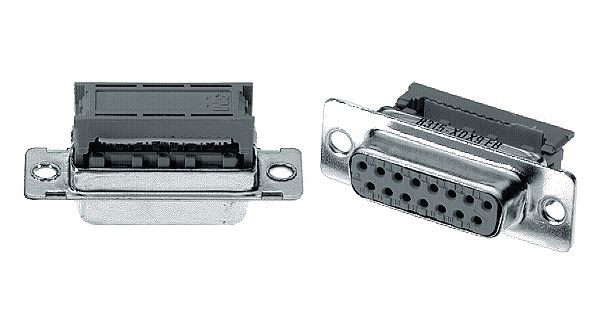

37-position, 2-row D-subminiature receptacle connector featuring right-angle mounting and IDC termination. This RoHS compliant, signal contact connector utilizes a copper alloy with gold plating for reliable performance. Constructed with a steel body and metal case, it offers a current rating of 1A and operates within a temperature range of -55°C to 105°C. The dielectric material is PBT, with a UL94 V-0 flammability rating.
PackageMetal
Current Rating1A
MountingPanel
Quick Jump:
Technical Specifications
3M 8337-6009 technical specifications.
General
| Body Material | Steel |
| Package/Case | Metal |
| Color | Grey |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 1A |
| Depth | 12.4mm |
| Dielectric Material | PBT |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Length | 69.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Contacts | 37 |
| Number of Ports | 1 |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pitch | 2.74mm |
| RoHS Compliant | Yes |
| Series | 8300 |
| Termination | IDC |
| Width | 12.4mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
3M 8337-6009 Datasheet
Download the complete datasheet for 3M 8337-6009 to view detailed technical specifications.
