20-position, 2-row female socket strip with 2.54mm pitch and straight, through-hole mounting. Features gold-plated copper alloy contacts for reliable mating, a grey PBT housing, and a 1A current rating. Operates within a -55°C to 105°C temperature range and boasts a 1kV voltage rating. UL94 V-0 flammability rating and RoHS compliant.
Voltage Rating1kV
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 9120-4500PL technical specifications.
General
Color
Grey
Contact Finish - Mating
GOLD
Contact Gender
Female
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Contact Shape
Square
Contact Type
Female Socket
Current Rating
1A
Depth
7.1mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Grey
Insulation Color
Grey
Insulation Material
PBT
Lead Free
Lead Free
Lead Length
3m
Length
29.9mm
Max Current Rating
1A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Sensing Distance
3m
Series
9100
Termination
Solder
Voltage Rating
1kV
Compliance
RoHS
Compliant
Datasheet
3M 9120-4500PL Datasheet
Download the complete datasheet for 3M 9120-4500PL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

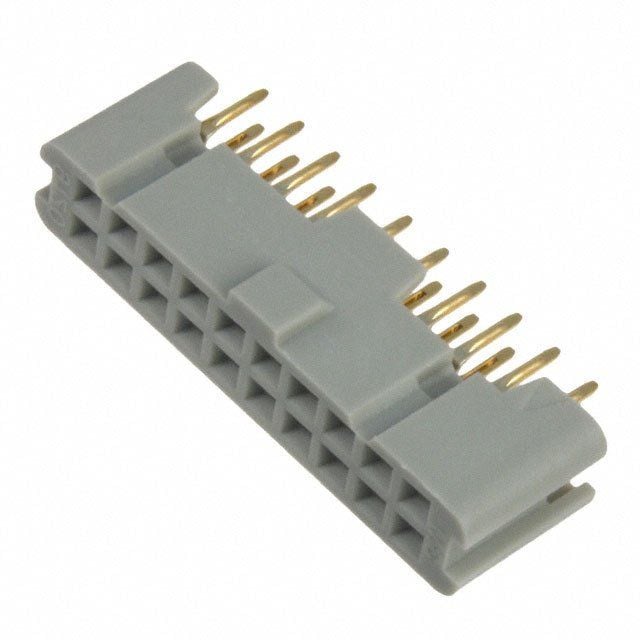

Product Images
