34 Pos 2.54mm RA Header Conn, Gold, Through Hole, 2A

D2534-5002-AR

Name: D2534-5002-AR 3M
Brand: 3M
SKU: D2534-5002-AR

34 Pos 2.54mm RA Header Conn, Gold, Through Hole, 2A

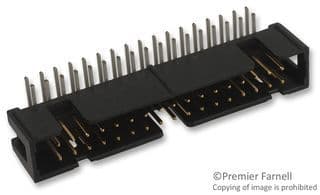

Right-angle male header connector featuring 34 positions and 2 rows with a 2.54mm pitch. Male pin contacts are constructed from brass with gold plating for mating surfaces, offering a 2A current rating. The black glass-filled polyester housing ensures UL94 V-0 flammability rating and mounts via through-hole termination.

Current Rating2A

MountingThrough Hole

Quick Jump:

Technical Specifications

3M D2534-5002-AR technical specifications.

General

Contact Finish - Mating	GOLD
Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2A
Depth	12.44mm
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Insulation Color	Black
Insulation Material	Glass
Max Current Rating	2A
Mount	Through Hole
Number of Contacts	34
Number of Positions	34
Number of Rows	2
Orientation	Right Angle
Package Quantity	280
Packaging	Rail/Tube
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	D2500
Termination	Through Hole
