34-position, 2-row vertical header connector with S-latch termination. Features gold-plated brass male pin contacts with a 0.24-inch mating length and 2A current rating. Black glass-filled polyester housing with UL94 V-0 flammability rating. Through-hole mounting with 2.54mm pitch and 0.1-inch row spacing.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M D3431-6202-AR technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.24inch |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 8.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Max Current Rating | 2A |
| Mount | Through Hole |
| Number of Contacts | 34 |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| Row Spacing | 0.1inch |
| Series | D3000 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M D3431-6202-AR Datasheet
Download the complete datasheet for 3M D3431-6202-AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

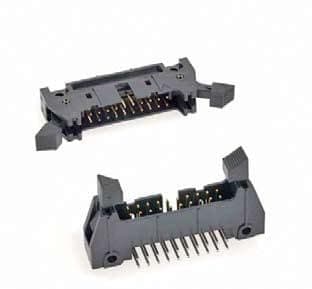

Product Images
