37-conductor, 28AWG flat flex ribbon cable featuring a 1.27mm pitch and 168 Ohm characteristic impedance. Constructed with copper conductors and halogen-free polyolefin insulation and jacket, this unshielded cable offers a 300V DC rated voltage. Available in a gray color with a blue first conductor mark, it is RoHS compliant and supplied in a 100-foot roll.
Package100
Voltage300V
Capacitance27.552pF
Voltage Rating50V
Quick Jump:
Technical Specifications
3M HF365/37 technical specifications.
General
Capacitance
27.552pF
Package/Case
100
Characteristic Impedance
168R
Color
Grey
Conductor Material
Copper
Depth
46.99mm
First Conductor Mark
Blue
Insulation Material
PO
Jacket Material
Polyolefin
Length
100foot
Mount
Cable
Number of Conductors
37
Number of Cores
37
Number of Strands
7
Number of Ways
37
Packaging
Roll
Pitch
1.27mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
HF365
Shielding
Unshielded
Stranding
7X36
Voltage
300V
Voltage Rating
50V
DC Rated Voltage
300V
Width
1.85inch
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Flat Flex, Ribbon
Compliance
RoHS
Compliant
Datasheet
3M HF365/37 Datasheet
Download the complete datasheet for 3M HF365/37 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

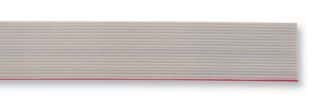

Product Images
