50-position, 2-row straight shrouded header with 2.54mm pitch. Features male pin contacts made of copper alloy with gold plating for superior mating. Rated for 1A current (2A max) and operates between -55°C and 105°C. Through-hole termination with solder connection, housed in black, UL94 V-0 rated glass-filled insulation.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
3M N3433-6002RB technical specifications.
General
| Approvals | UL |
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 8.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Lead Free | Lead Free |
| Length | 82.93mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Series | 3000 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
3M N3433-6002RB Datasheet
Download the complete datasheet for 3M N3433-6002RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

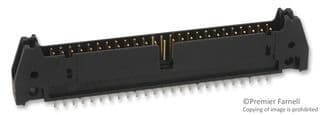

Product Images
