This 1kV 5A through hole connector features copper alloy contacts and is compliant with lead-free standards. It operates within a temperature range of -55°C to 105°C. The connector is available in quantities of 200 and is part of the 3000 series.
Voltage Rating1kV
Current Rating5A
Quick Jump:
Technical Specifications
3M N3505-2B technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 5A |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 200 |
| Reach SVHC Compliant | Unknown |
| Series | 3000 |
| Termination | Through Hole |
| Voltage Rating | 1kV |
Compliance
| RoHS | Compliant |
Datasheet
3M N3505-2B Datasheet
Download the complete datasheet for 3M N3505-2B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

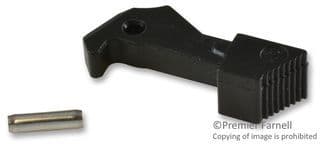

Product Images
