Passive heat sink designed for TO-218 packages, featuring a black anodized aluminum construction for enhanced thermal performance. Offers a natural thermal resistance of 6.3°C/W and a thermal resistance of 1.5°C/W at 100 LFM forced air flow. Dimensions include a 44.45mm length and height, 12.45mm depth, and 0.49inch width. Mounting options include board, clip, and solder. This RoHS compliant component is supplied in quantities of 500.
PackageTO-218
MountingBoard, Clip, Solder
Quick Jump:
Technical Specifications
Aavid 530101B00150G technical specifications.
General
Package/Case
TO-218
Color
Black
Depth
12.45mm
Finish
Anodized
Height
44.45mm
Height Off Base
1.75inch
Lead Free
Lead Free
Length
44.45mm
Material
Aluminium, Anodized
Mount
Board, Clip, Solder
Natural Thermal Resistance
6.3°C/W
Package Cooled
TO-218
Package Quantity
500
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shape
Square, Fins
Thermal Resistance @ Forced Air Flow (100 LFM)
1.5°C/W
Type
Passive
Width
0.49inch
Compliance
RoHS
Compliant
Datasheet
Aavid 530101B00150G Datasheet
Download the complete datasheet for Aavid 530101B00150G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

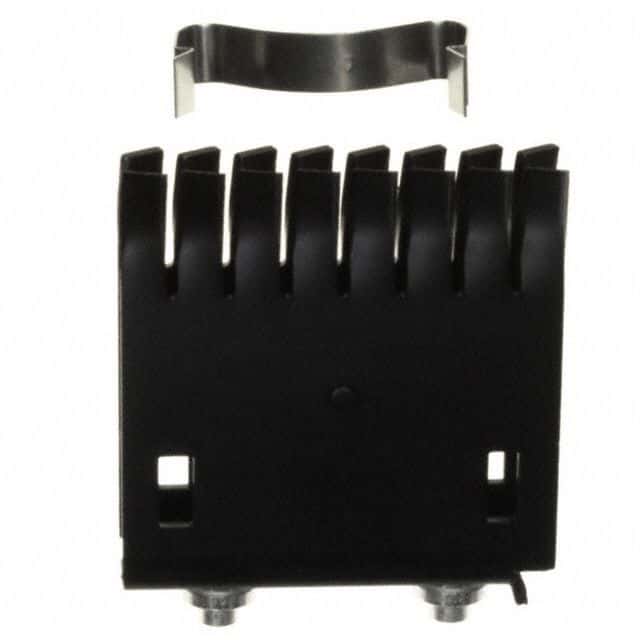

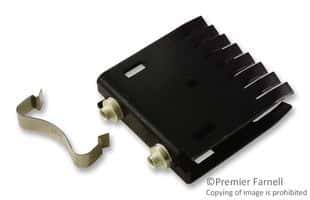

Product Images
