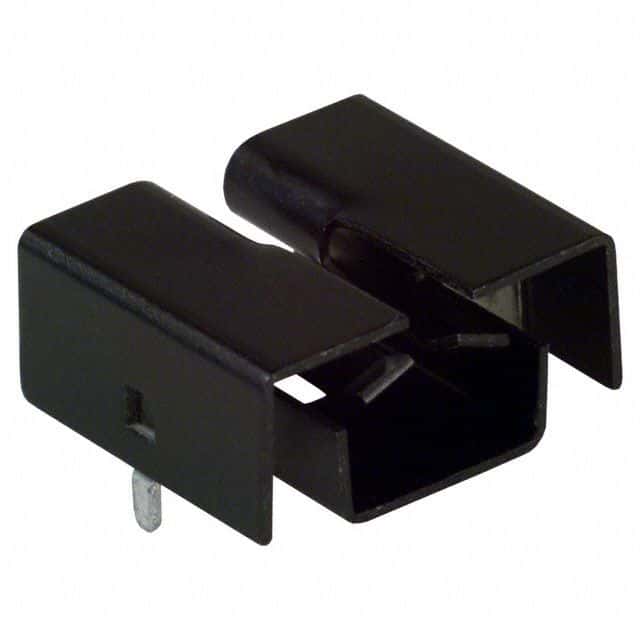

Passive heat sink for TO-220 packages, featuring a slide-on, folded-back design crafted from anodized aluminum. Offers a natural thermal resistance of 23.2°C/W and 12°C/W under 100 LFM forced air. Dimensions include a 21.08mm length, 19.05mm height, and 0.86-inch width. Mountable via clip, PC pin, or solder, this RoHS compliant component is finished in black.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aavid 574402B03200G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Color | Black |
| Depth | 19.05mm |
| Finish | Anodized |
| Height | 19.05mm |
| Height Off Base | 0.395inch |
| Lead Free | Lead Free |
| Length | 21.08mm |
| Material | Aluminium, Anodized |
| Mount | Clip, PC Pin, Solder |
| Natural Thermal Resistance | 23.2°C/W |
| Package Cooled | TO-220 |
| Package Quantity | 1500 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5744 |
| Shape | Rectangular |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 12°C/W |
| Type | Passive |
| Width | 0.86inch |
| RoHS | Compliant |
