Passive heat sink designed for TO-220/TO-262 packages, featuring a clip-on mounting mechanism. Constructed from anodized aluminum with a black finish, this component offers a natural thermal resistance of 27.3°C/W and 7°C/W under 100 LFM forced air. Dimensions include a 14.48mm length and width, 19.05mm height, and 12.7mm depth. It is RoHS compliant and lead-free.
PackageTO-220
MountingClip, PC Pin, Solder
Quick Jump:
Technical Specifications
Aavid 576802B04000G technical specifications.
General
Package/Case
TO-220
Color
Black
Depth
12.7mm
Finish
Anodized
Height
19.05mm
Height Off Base
0.5inch
Lead Free
Lead Free
Length
14.48mm
Material
Aluminium, Anodized
Mount
Clip, PC Pin, Solder
Natural Thermal Resistance
27.3°C/W
Package Quantity
2000
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Shape
Fins, Rectangular
Thermal Resistance @ Forced Air Flow (100 LFM)
7°C/W
Type
Passive
Width
14.48mm
Compliance
RoHS
Compliant
Datasheet
Aavid 576802B04000G Datasheet
Download the complete datasheet for Aavid 576802B04000G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

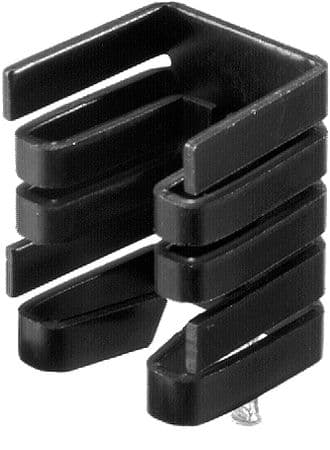

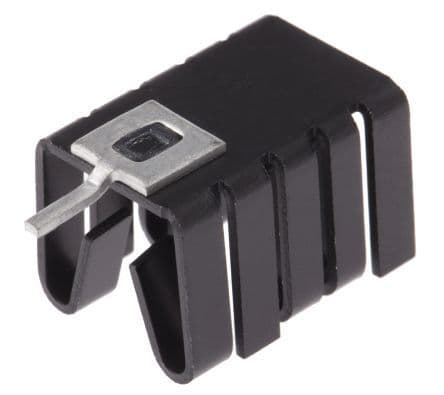

Product Images
