Technical Specifications

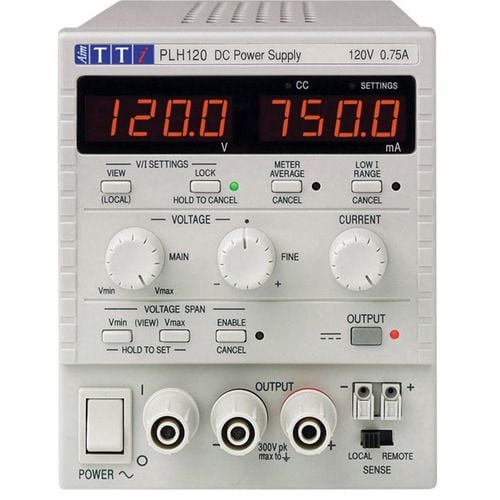

Aim-Tti PLH120 technical specifications.
General
Display Type
Digital
Height
131mm
Length
288mm
Max Operating Temperature
40°C
Min Operating Temperature
5°C
Max Output Current
750mA
Max Output Voltage
120V
Min Output Voltage
0V
Max Power Dissipation
90W
Max Supply Voltage (AC)
230V
Min Supply Voltage (AC)
115V
Number of Characters
8
Number of Outputs
1
Operating Supply Voltage
230V
Output Connector
Binding Post Terminal
Output Current
750mA
Output Voltage
120V
Reach SVHC Compliant
No
Series
PLH
Weight
10.8lb
Width
107mm
Compliance
RoHS
Compliant
Datasheet
Aim-Tti PLH120 Datasheet
Download the complete datasheet for Aim-Tti PLH120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
