Frequency20MHz
PackageSMD/SMT
Voltage3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Aker S33305-20.000-X technical specifications.
General
Accuracy
50ppm
Package/Case
SMD/SMT
Frequency
20MHz
Frequency Stability
50ppm
Height
1.1mm
Length
3.2mm
Load Capacitance
15pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
20mA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Series
S3
Termination
SMD/SMT
Voltage
3.3V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Aker S33305-20.000-X Datasheet
Download the complete datasheet for Aker S33305-20.000-X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

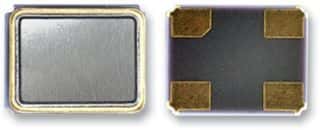

Product Images
