Frequency12MHz
PackageSMD/SMT
Voltage3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications

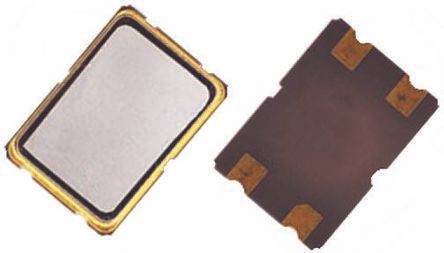

Aker S73305-12.000-X-15 technical specifications.
General
Accuracy
50ppm
Package/Case
SMD/SMT
Frequency
12MHz
Frequency Stability
50ppm
Frequency Tolerance
0.005%
Height
1.3mm
Length
7mm
Load Capacitance
15pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
15mA
Max Supply Voltage
3.63V
Min Supply Voltage
2.97V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
S7
Voltage
3.3V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Aker S73305-12.000-X-15 Datasheet
Download the complete datasheet for Aker S73305-12.000-X-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
