Alcoa Camloc
SSV6050500001
Steel Ball & Socket Joint Rod, 170mm Extended, 60mm Stroke, 6mm Rod Diameter
The SSV6050500001 from Alcoa Camloc is a steel rod with a ball and socket joint end connector made of nylon and steel. The rod has an extended length of 170mm and a stroke length of 60mm. The rod diameter is 6mm and the piston diameter is 15mm. The maximum force is 400N and the minimum force is 50N.
Quick Jump:
Technical Specifications
Alcoa Camloc SSV6050500001 technical specifications.
General
| Cylinder Material | Steel |
| End Connector Material | Nylon, Steel |
| End Connector | Ball & Socket Joint |
| Extended Length | 170mm |
| Stroke Length | 60mm |
| Rod Diameter | 6mm |
| Piston Diameter | 15mm |
| Maximum Force | 400N |
| Minimum Force | 50N |
Compliance
| RoHS | Compliant |
Datasheet
Alcoa Camloc SSV6050500001 Datasheet
Download the complete datasheet for Alcoa Camloc SSV6050500001 to view detailed technical specifications.
No datasheet is available for this part.

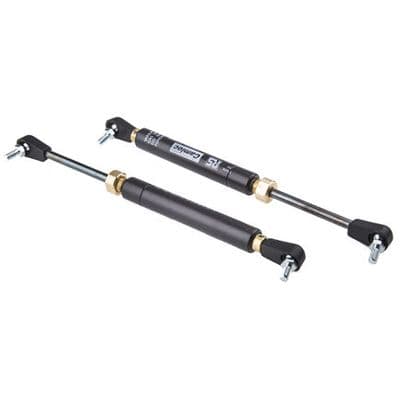

Product Images
