3-conductor, 22AWG multi-conductor cable featuring 7x30 stranded copper conductors. Insulated and jacketed with durable PVC, this unshielded cable offers a 300VAC maximum voltage rating and operates within a temperature range of -20°C to 80°C. The cable has an outside diameter of 4.62mm and is supplied on a 30.48m spool. Approvals include UL and CSA, with RoHS compliance.
Voltage150V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1173C SL005 technical specifications.
General
| Approvals | UL, CSA |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Cable |
| Number of Conductors | 3 |
| Number of Cores | 3 |
| Number of Strands | 7 |
| Outside Diameter | 0.17inch |
| Packaging | Spool |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 7 x 30 |
| Voltage | 150V |
| Voltage Rating | 300V |
| Weight | 1.75lb |
| Wire/Cable Diameter | 4.3mm |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 1173C SL005 Datasheet
Download the complete datasheet for Alpha Wire 1173C SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

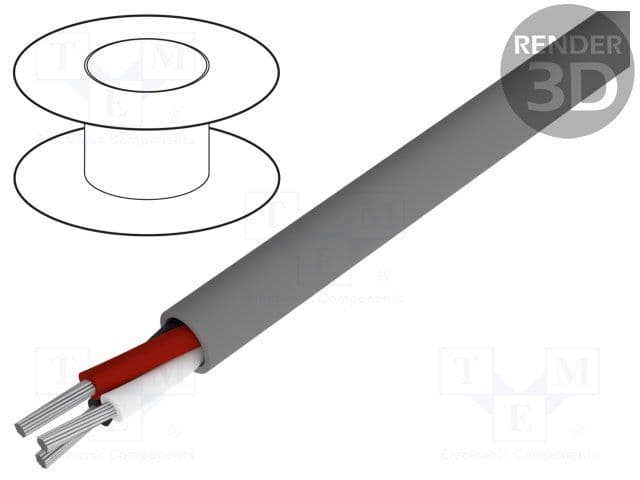

Product Images
