Voltage150V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1176C-SL002 technical specifications.
General
Approvals
UL, CSA
Color
Grey
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
500foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
6
Number of Cores
6
Outside Diameter
0.21inch
Packaging
Spool
Reach SVHC Compliant
No
Shielding
Unshielded
Stranding
7 x 30
Voltage
150V
Voltage Rating
300V
Weight
14.83lb
Wire/Cable Gauge
22AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 1176C-SL002 Datasheet
Download the complete datasheet for Alpha Wire 1176C-SL002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

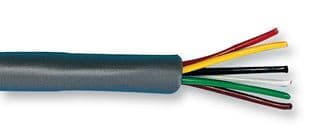

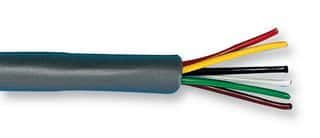

Product Images
