6-conductor, 22AWG multi-conductor cable featuring 7x30 stranded copper conductors with PVC insulation and a PVC jacket. Rated for 300VAC, this unshielded cable operates between -20°C and 75°C. It has an outside diameter of 5.76mm and is supplied on a 30.48m spool. Approvals include UL and CSA, with RoHS compliance.
Voltage150V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1176C SL005 technical specifications.
General
Approvals
UL, CSA
Color
Grey
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Operating Temperature
75°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
300V
Mount
Cable
Number of Conductors
6
Number of Cores
6
Number of Strands
7
Outside Diameter
0.21inch
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Stranding
7 x 30
Voltage
150V
Voltage Rating
300V
Voltage Rating (AC)
300V
Weight
3lb
Wire/Cable Diameter
5.3mm
Wire/Cable Gauge
22AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Not Compliant
Datasheet
Alpha Wire 1176C SL005 Datasheet
Download the complete datasheet for Alpha Wire 1176C SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

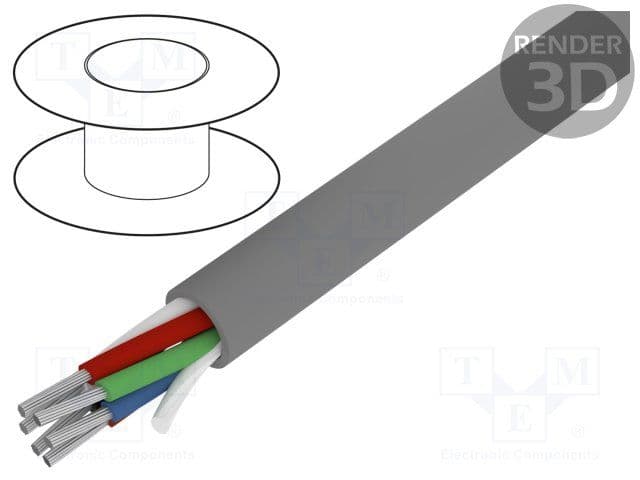

Product Images
