Alpha Wire
1751SL005
ALPHA WIRE 1751 SL005 Multicore Screened Cable, Control, Slate, 3 Core, 14 AWG, 100 ft, 30.5 m
Package100
Voltage450V
Voltage Rating450V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1751SL005 technical specifications.
General
| Package/Case | 100 |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.317inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.02inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 3 |
| Number of Cores | 3 |
| Outside Diameter | 7.4mm |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
| Wire/Cable Gauge | 14AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 1751SL005 Datasheet
Download the complete datasheet for Alpha Wire 1751SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

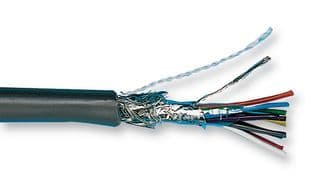

Product Images
