ALPHA WIRE

1858/19OR005

Datasheet

16AWG Hook-Up Wire, 19/29 Stranded Copper, PVC, 600V, 105°C, Orange, 100ft

Alpha Wire

1858/19OR005

Name: 1858/19OR005 Alpha Wire
Brand: Alpha Wire
SKU: 1858/19OR005

16AWG Hook-Up Wire, 19/29 Stranded Copper, PVC, 600V, 105°C, Orange, 100ft

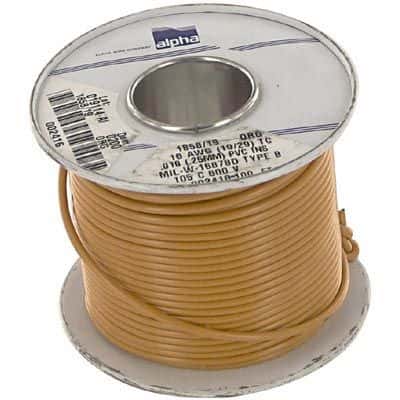

16AWG hook-up wire featuring a 19-strand copper conductor with a 29 AWG stranding configuration. Insulated with orange PVC, it offers a 0.076-inch insulation diameter and 0.01-inch insulation thickness. Rated for 600V AC/DC, this wire operates within a temperature range of -55°C to 105°C. The cable is supplied on a 100-foot spool.

Package100

Voltage600V

Voltage Rating600V

MountingCable

Quick Jump:

Technical Specifications

Alpha Wire 1858/19OR005 technical specifications.

General

Package/Case	100
Color	Orange
Conductor Material	Copper
Insulation Diameter	0.076inch
Insulation Material	PVC
Insulation Thickness	0.01inch
Jacket Material	PVC
Length	100foot
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Cable
Number of Strands	19
Outside Diameter	1.96mm
Package Quantity	1
Packaging	Spool
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	MIL-W-16878E/1, 1858/19
Stranding	19 x 29
Voltage	600V
Voltage Rating	600V
Voltage Rating (AC)	600V
DC Rated Voltage	600V
Weight	1.1lb
Wire/Cable Gauge	16AWG
Wire/Cable Type	Hook-Up
