Voltage150V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1895C-SL001 technical specifications.
General
Approvals
UL, CSA
Color
Grey
Conductor Material
Copper
Flammability Rating
UL VW-1
Insulation Material
PVC
Jacket Material
PVC
Lead Free
Lead Free
Length
1000foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
2
Number of Cores
2
Outside Diameter
0.18inch
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Stranding
7 x 28
Voltage
150V
Voltage Rating
300V
DC Rated Voltage
300V
Weight
17.12lb
Wire/Cable Gauge
20AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 1895C-SL001 Datasheet
Download the complete datasheet for Alpha Wire 1895C-SL001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

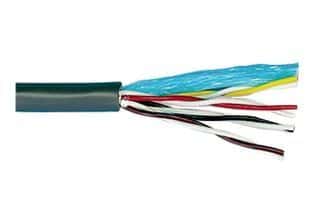

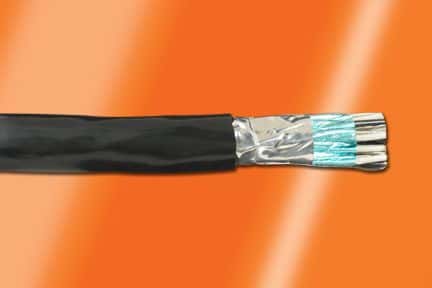

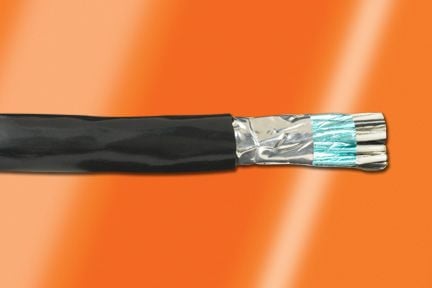

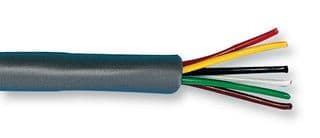

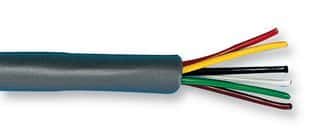

Product Images
