Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 1897C-SL001 technical specifications.
General
Approvals
UL, CSA
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.198inch
Insulation Material
PVC
Insulation Thickness
0.02inch
Jacket Material
PVC
Length
1000foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
2
Number of Cores
2
Outside Diameter
0.2inch
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
Shielding
Unshielded
Stranding
16 x 30
Voltage
300V
Voltage Rating
300V
Weight
22.58lb
Wire/Cable Gauge
18AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 1897C-SL001 Datasheet
Download the complete datasheet for Alpha Wire 1897C-SL001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

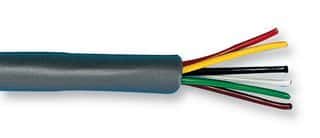

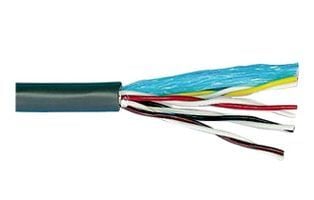

Product Images
