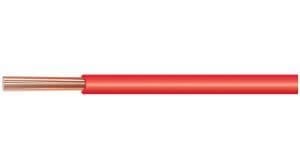

Red hook-up wire featuring 28AWG stranded copper conductors with silver plating. Insulated with PTFE for a 0.027-inch diameter and 0.006-inch thickness, offering a 250V voltage rating. This wire operates between -60°C and 200°C, with a 1000-foot spool length. It is RoHS compliant and designed for external mounting.
Voltage250V
Voltage Rating250V
MountingExternal
Quick Jump:
Technical Specifications
Alpha Wire 2842/19RD001 technical specifications.
General
Color
Red
Conductor Material
Copper, Silver
Insulation Diameter
0.027inch
Insulation Material
PTFE
Insulation Thickness
0.006inch
Jacket Material
PTFE
Length
1000foot
Max Operating Temperature
200°C
Min Operating Temperature
-60°C
Mount
External
Outside Diameter
0.69mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MIL-W-16878/6 Type ET, 2842/19
Stranding
19 x 40
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.2lb
Wire/Cable Gauge
28AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
