Alpha Wire
3055-SL005

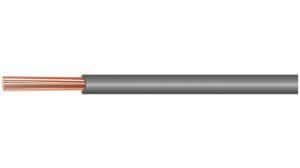

Alpha Wire Grey, 30m PVC UL1007 Hook Up Wire, 0.81 mm CSA Flame Retardant, 300 V 18 AWG
Package300
Voltage Rating300V
MountingWire
Quick Jump:
Technical Specifications
Alpha Wire 3055-SL005 technical specifications.
General
Package/Case
300
Color
Grey
Conductor Material
Copper
Flammability Rating
UL VW-1
Insulation Material
PVC
Insulation Thickness
0.41mm
Jacket Material
PVC
Length
30m
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Wire
Number of Conductors
1
Number of Strands
16
Outside Diameter
2.01mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage Rating
300V
DC Rated Voltage
300V
Wire/Cable Diameter
2.03mm
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 3055-SL005 Datasheet
Download the complete datasheet for Alpha Wire 3055-SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
