20-conductor, 28AWG flat ribbon cable featuring a 1.27mm (0.05 inch) pitch and a 1-inch ribbon width. Constructed with copper conductors and PVC insulation, this unshielded cable offers a 300VAC maximum voltage rating and operates between -20°C and 105°C. The cable is gray with a red stripe on the first conductor, providing a 100-foot bulk length.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 3580/20 SL005 technical specifications.
General
Cable Pitch
1.27mm
Package/Case
100
Color
Grey, Red
Conductor Material
Copper
First Conductor Mark
Red
Impedance
105R
Insulation Material
PVC
Jacket Material
Polyvinyl
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
300V
Mount
Cable
Number of Conductors
20
Number of Cores
20
Package Quantity
1
Packaging
Bulk
Pitch
0.05inch
Reach SVHC Compliant
No
Ribbon Thickness
0.033inch
Ribbon Width
1inch
Series
3580
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
DC Rated Voltage
300V
Weight
2.4lb
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Ribbon, Flat Flex
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 3580/20 SL005 Datasheet
Download the complete datasheet for Alpha Wire 3580/20 SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

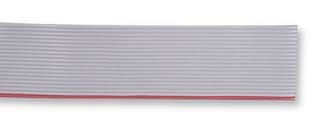

Product Images
