Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications

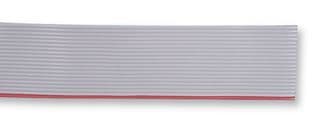

Alpha Wire 3580/64SL005 technical specifications.
General
Package/Case
100
Color
Grey
Conductor Material
Copper
First Conductor Mark
Red
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
64
Package Quantity
1
Pitch
0.05inch
Reach SVHC Compliant
No
Ribbon Thickness
0.033inch
Ribbon Width
3.2inch
Series
3580
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
DC Rated Voltage
300V
Weight
3.2lb
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Ribbon
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 3580/64SL005 Datasheet
Download the complete datasheet for Alpha Wire 3580/64SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
