Alpha Wire
5006C

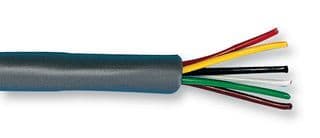

Multi-Conductor Cable 6Conductors 22AWG 5.8mm 300VAC Gray/Black 30.48m/152.4m/304.8m Spool
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5006C technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Mount | Cable |
| Number of Conductors | 6 |
| Number of Cores | 6 |
| Outside Diameter | 5.8mm |
| Reach SVHC Compliant | No |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5006C Datasheet
Download the complete datasheet for Alpha Wire 5006C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
