Alpha Wire
5010/15CSL001
Multicore Cable, Xtra Guard 1, Unscreened, 15 Core, 22 AWG, 0.35 mm, 1000 ft, 304.8 m
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5010/15CSL001 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Flammability Rating | UL VW-1 |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -35°C |
| Mount | Cable |
| Number of Conductors | 15 |
| Number of Cores | 15 |
| Outside Diameter | 7.9mm |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Xtra-Guard® 1 |
| Shielding | Unshielded |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5010/15CSL001 Datasheet
Download the complete datasheet for Alpha Wire 5010/15CSL001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

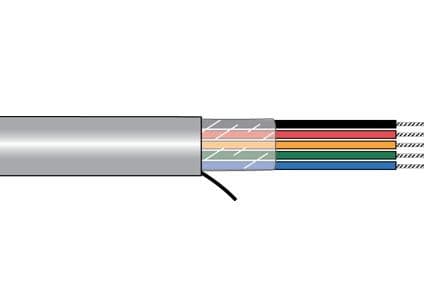

Product Images
