Alpha Wire
5022C-SL005
ALPHA WIRE 5022C SL005 Multipair Unscreened Cable, Xtra Guard 1, Grey, 2 Pair, 22 AWG, 0.35 mm, 100 ft, 30.5 m
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5022C-SL005 technical specifications.
General
Package/Case
100
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.232inch
Insulation Material
PVC
Insulation Thickness
0.032inch
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Mount
Cable
Outside Diameter
5.7mm
Package Quantity
1
Reach SVHC Compliant
No
Series
Xtra-Guard® 1
Voltage
300V
Voltage Rating
300V
DC Rated Voltage
300V
Wire/Cable Gauge
22AWG
Wire/Cable Type
Multi-Pair
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5022C-SL005 Datasheet
Download the complete datasheet for Alpha Wire 5022C-SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

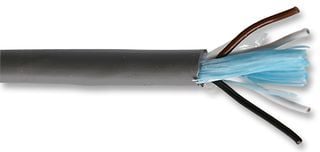

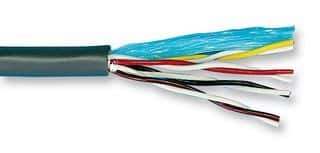

Product Images
