18AWG multi-conductor cable featuring 2 conductors made of copper, each with PVC insulation. This unshielded cable has a 5.8mm outside diameter and a 300V voltage rating. Operating within a temperature range of -35°C to 105°C, it is supplied on a 100-foot spool. Approvals include UL, CSA, and CE.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5062C SL005 technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
100
Color
Grey
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
Polyvinyl
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-35°C
Mount
Cable
Number of Conductors
2
Number of Cores
2
Outside Diameter
5.8mm
Packaging
Spool
Series
Xtra-Guard® 1
Shielding
Unshielded
Stranding
16 x 30
Voltage
300V
Voltage Rating
300V
Wire/Cable Diameter
5.8mm
Wire/Cable Gauge
18AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5062C SL005 Datasheet
Download the complete datasheet for Alpha Wire 5062C SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

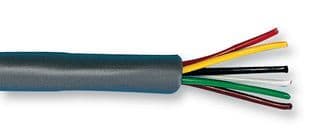

Product Images
