Alpha Wire
5096C

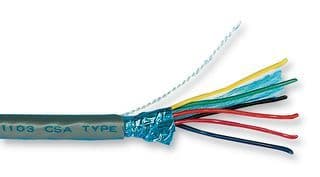

ALPHA WIRE 5096C Multicore Screened Cable, Xtra Guard 1, Per M, Grey, 6 Core, 24 AWG, 0.2 mm
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5096C technical specifications.
General
Color
Grey
Conductor Material
Copper
Jacket Material
PVC
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
6
Number of Cores
6
Outside Diameter
5.1mm
Reach SVHC Compliant
No
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5096C Datasheet
Download the complete datasheet for Alpha Wire 5096C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
