Alpha Wire
5272C

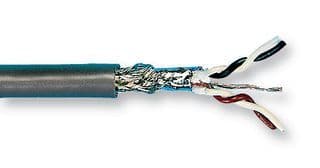

ALPHA WIRE 5272C Multipair Screened Cable, Xtra Guard 1, Per M, Grey, 2 Pair, 24 AWG, 0.2 mm
Package300
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5272C technical specifications.
General
Package/Case
300
Color
Grey
Conductor Material
Copper
Jacket Material
PVC
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
4
Number of Cores
4
Number of Pairs
2
Outside Diameter
5.8mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5272C Datasheet
Download the complete datasheet for Alpha Wire 5272C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
