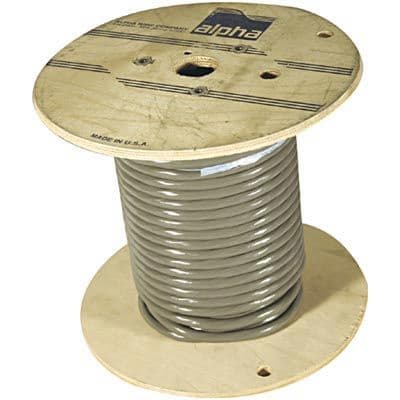

15-conductor, 20AWG shielded multi-conductor cable, featuring stranded copper conductors with PVC insulation and a PVC jacket. Rated for 300V, this cable operates within a temperature range of -35°C to 105°C. The cable is presented on a 100-foot spool, with an outside diameter of 10.41mm. Approvals include UL, CSA, and CE, and it is RoHS compliant.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5470/15CSL005 technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
100
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.395inch
Insulation Material
PVC
Insulation Thickness
0.032inch
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-35°C
Mount
Cable
Number of Conductors
15
Number of Cores
15
Outside Diameter
10.41mm
Package Quantity
1
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Xtra-Guard® 1
Shielding
Shielded
Stranding
7 x 28
Voltage
300V
Voltage Rating
300V
Weight
10.81lb
Wire/Cable Gauge
20AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
