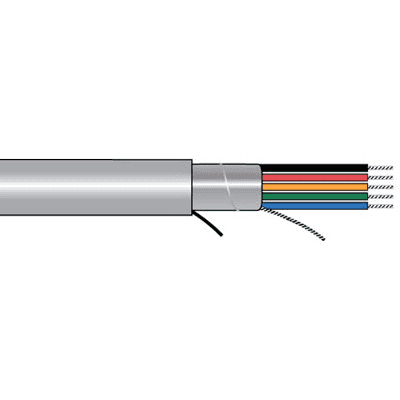

20 AWG multi-conductor cable, featuring 20 conductors, offers a 300V voltage rating and a maximum operating temperature of 105°C. Constructed with copper conductors and PVC insulation and jacket, this shielded cable is supplied on a 100-foot spool. Approvals include UL, CSA, and CE, with RoHS compliance.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5470/20CSL005 technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
100
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.441inch
Insulation Material
PVC
Insulation Thickness
0.032inch
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-35°C
Mount
Cable
Number of Conductors
20
Number of Cores
20
Outside Diameter
11.68mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Xtra-Guard® 1
Shielding
Shielded
Stranding
7 x 28
Voltage
300V
Voltage Rating
300V
Weight
13.81lb
Wire/Cable Gauge
20AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5470/20CSL005 Datasheet
Download the complete datasheet for Alpha Wire 5470/20CSL005 to view detailed technical specifications.
