Alpha Wire
5482CSL001
Multipair Cable, Xtra Guard 1, Screened, 2 Pair, 22 AWG, 0.35 mm, 1000 ft, 304.8 m
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5482CSL001 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.236inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.032inch |
| Jacket Material | PVC |
| Length | 1000foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -35°C |
| Mount | Cable |
| Number of Pairs | 2 |
| Outside Diameter | 5.8mm |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Xtra-Guard® 1 |
| Shielding | Shielded |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5482CSL001 Datasheet
Download the complete datasheet for Alpha Wire 5482CSL001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

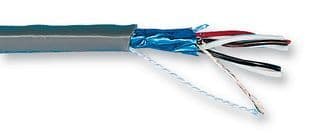

Product Images
