Package300
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5493C-SL005 technical specifications.
General
Package/Case
300
Color
Grey
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Mount
Cable
Number of Conductors
6
Number of Pairs
3
Outside Diameter
5.84mm
Package Quantity
1
Reach SVHC Compliant
No
Series
5493
Shielding
Shielded
Stranding
7 x 32
Voltage Rating
300V
DC Rated Voltage
300V
Weight
2.7lb
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5493C-SL005 Datasheet
Download the complete datasheet for Alpha Wire 5493C-SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

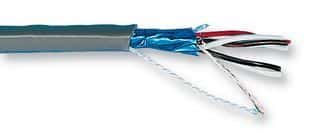

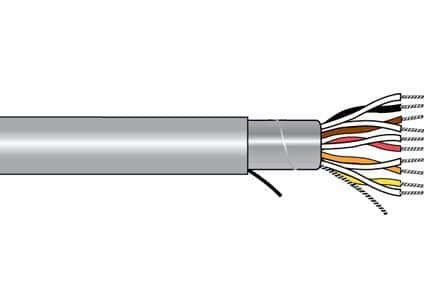

Product Images
