Hook-up wire featuring 26AWG stranded copper conductor with silver plating, insulated with PTFE for a maximum operating temperature of 200°C. This 1000-foot spool of brown wire offers a 600V voltage rating and a 0.039-inch insulation diameter. Constructed to MIL-W-16878/4 Type E standards, it boasts a 7 x 34 stranding configuration and is RoHS compliant.
Package600
Voltage600V
Voltage Rating600V
Quick Jump:
Technical Specifications
Alpha Wire 5853BR001 technical specifications.
General
Approvals
UL
Package/Case
600
Color
Brown
Conductor Material
Copper, Silver
Insulation Diameter
0.039inch
Insulation Material
PTFE
Insulation Thickness
0.01inch
Jacket Material
PTFE
Length
1000foot
Max Operating Temperature
200°C
Min Operating Temperature
-60°C
Outside Diameter
1.02mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MIL-W-16878/4 Type E, 5853
Stranding
7 x 34
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
2lb
Wire/Cable Gauge
26AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5853BR001 Datasheet
Download the complete datasheet for Alpha Wire 5853BR001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

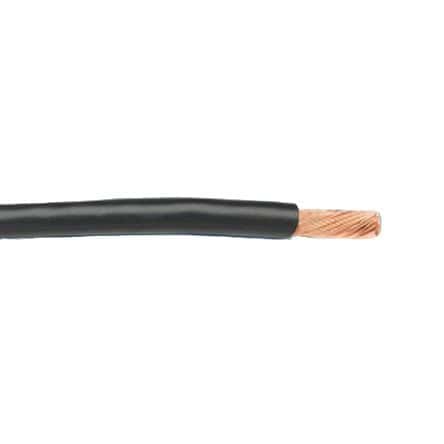

Product Images
