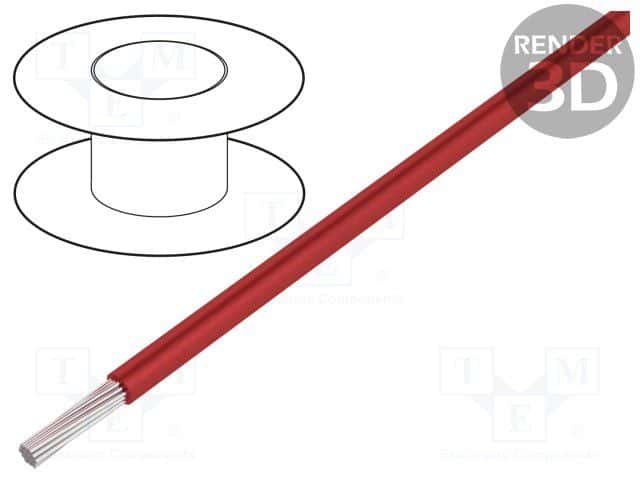

Red, 24AWG stranded hook-up wire featuring a single conductor of silver-coated copper. Insulated with PTFE to a thickness of 0.01 inches, providing a 0.044-inch insulation diameter and a 1.12mm overall diameter. Rated for 600V, this wire operates from -60°C to 200°C and carries a 10A current rating. UL VW-1 flammability rated and RoHS compliant, supplied on a 1000-foot spool.
Package600
Voltage600V
Voltage Rating600V
Current Rating10A
Quick Jump:
Technical Specifications
Alpha Wire 5854/7 RD001 technical specifications.
General
Approvals
UL
Package/Case
600
Color
Red
Conductor Material
Copper, Silver
Current Rating
10A
Flammability Rating
UL VW-1
Insulation Diameter
0.044inch
Insulation Material
PTFE
Insulation Thickness
0.01inch
Jacket Material
Tetrafluoroethylene
Length
1000foot
Max Operating Temperature
200°C
Min Operating Temperature
-60°C
Mount
Cable
Number of Conductors
1
Number of Cores
1
Outside Diameter
1.12mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MIL-W-16878/4 Type E, 5854/7
Stranding
7 x 32
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
2.8lb
Wire/Cable Diameter
1.12mm
Wire/Cable Gauge
24AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5854/7 RD001 Datasheet
Download the complete datasheet for Alpha Wire 5854/7 RD001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
