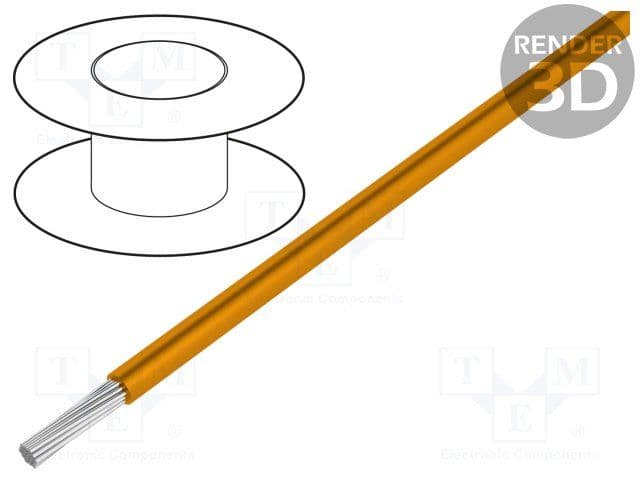

Hook-up wire featuring 20AWG stranded copper conductor with silver plating, rated for 600V AC/DC. PTFE insulation and jacket provide a maximum operating temperature of 200°C and a minimum of -60°C. This orange wire offers a current rating of 17A and comes on a 100-foot spool. It meets UL approvals and is RoHS compliant.
Package100
Voltage600V
Voltage Rating600V
Current Rating17A
Quick Jump:
Technical Specifications
Alpha Wire 5856OR005 technical specifications.
General
Approvals
UL
Package/Case
100
Color
Orange
Conductor Material
Copper, Silver
Current Rating
17A
Insulation Diameter
0.058inch
Insulation Material
PTFE
Insulation Thickness
0.01inch
Jacket Material
PTFE
Length
100foot
Max Operating Temperature
200°C
Min Operating Temperature
-60°C
Mount
External
Number of Cores
1
Outside Diameter
1.5mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MIL-W-16878/4 Type E, 5856
Stranding
19 x 32
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
1lb
Wire/Cable Gauge
20AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5856OR005 Datasheet
Download the complete datasheet for Alpha Wire 5856OR005 to view detailed technical specifications.
