24AWG stranded hook-up wire featuring a white PTFE insulation and jacket. Conductors are silver-plated copper, offering a maximum operating temperature of 200°C and a minimum of -60°C. This UL VW-1 rated wire supports 1kV voltage and 300V DC rated voltage, with an outside diameter of 1.32mm. The 100-foot spool is RoHS compliant and lead-free.
Package100
Voltage1kV
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5874WH005 technical specifications.
General
Approvals
UL
Package/Case
100
Color
White
Conductor Material
Copper, Silver
Flammability Rating
UL VW-1
Insulation Diameter
0.054inch
Insulation Material
PTFE
Insulation Thickness
0.014inch
Jacket Material
PTFE
Lead Free
Lead Free
Length
100foot
Max Operating Temperature
200°C
Min Operating Temperature
-60°C
Mount
Cable
Number of Conductors
1
Number of Strands
19
Outside Diameter
1.32mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
5874
Stranding
19 x 36
Voltage
1kV
Voltage Rating
300V
DC Rated Voltage
300V
Weight
1lb
Wire/Cable Gauge
24AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5874WH005 Datasheet
Download the complete datasheet for Alpha Wire 5874WH005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

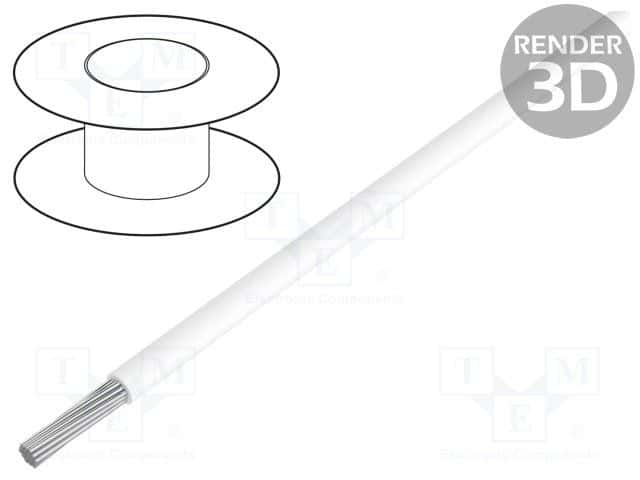

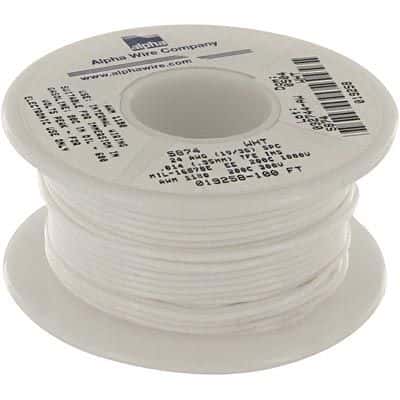

Product Images
