3-conductor, 22AWG multi-conductor cable on a 100-foot spool. Features shielded construction with a grey PVC jacket and PVC insulation. Conductors are stranded copper (7x30) with a 0.198-inch insulation diameter and 0.032-inch insulation thickness. Rated for 300V, operating between -20°C and 80°C. RoHS compliant.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 6339SL005 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | 100 |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.198inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.032inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 3 |
| Number of Cores | 3 |
| Number of Strands | 7 |
| Outside Diameter | 5.1mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 7X30 |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 3lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Not Compliant |
Datasheet
Alpha Wire 6339SL005 Datasheet
Download the complete datasheet for Alpha Wire 6339SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

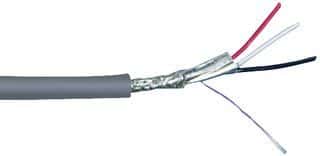

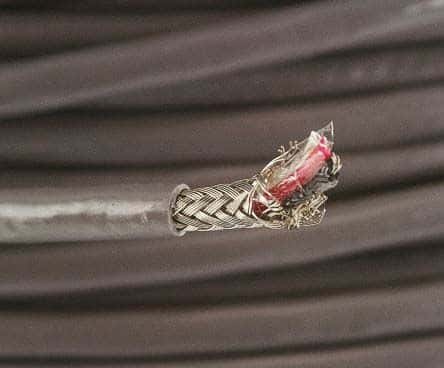

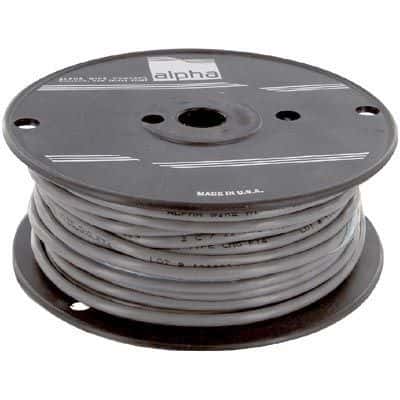

Product Images
