Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 6347-SL002 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Length | 500foot |
| Max Voltage Rating (AC) | 300V |
| Mount | Cable |
| Number of Conductors | 15 |
| Number of Cores | 15 |
| Outside Diameter | 8.64mm |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 6347 |
| Shielding | Shielded |
| Stranding | 7 x 30 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 45.2lb |
| Wire/Cable Diameter | 8.6mm |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 6347-SL002 Datasheet
Download the complete datasheet for Alpha Wire 6347-SL002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

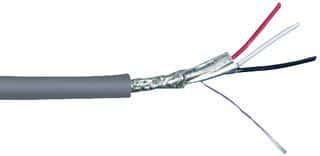

Product Images
