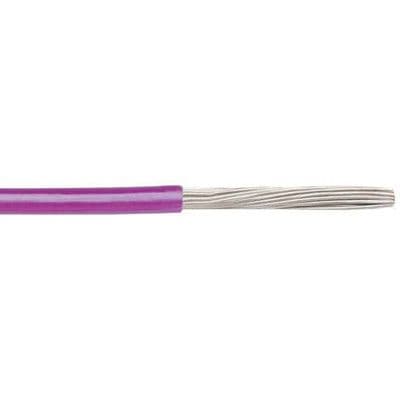

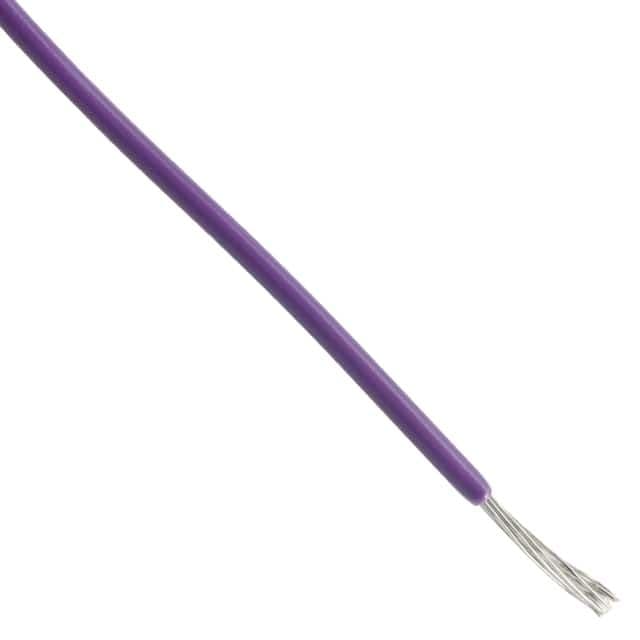

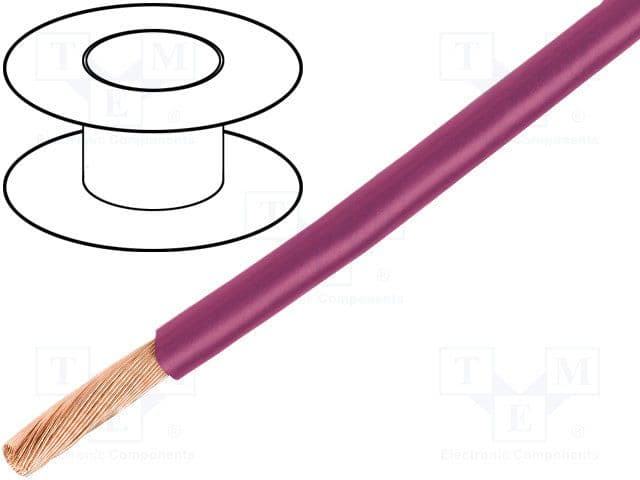

Hook-up wire, 26AWG, featuring a single conductor made of copper with 7 strands of 34 AWG. Insulated with polyphenylene and jacketed in MPPE, this violet wire offers a 600V voltage rating and a 5A current rating. Operating within a temperature range of -40°C to 105°C, it comes on a 1000-foot spool.
Package600
Voltage600V
Voltage Rating600V
Current Rating5A
Quick Jump:
Technical Specifications
Alpha Wire 6711VI001 technical specifications.
General
Package/Case
600
Color
Violet
Conductor Material
Copper
Current Rating
5A
Halogen Free
Not Halogen Free
Insulation Diameter
0.038inch
Insulation Material
Polyphenylene
Insulation Thickness
0.009inch
Jacket Material
MPPE
Length
1000foot
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Number of Conductors
1
Number of Strands
7
Outside Diameter
0.97mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Eco Wire™
Shielding
Unshielded
Stranding
7 x 34
Voltage
600V
Voltage Rating
600V
DC Rated Voltage
600V
Weight
1.75lb
Wire/Cable Gauge
26AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 6711VI001 Datasheet
Download the complete datasheet for Alpha Wire 6711VI001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
